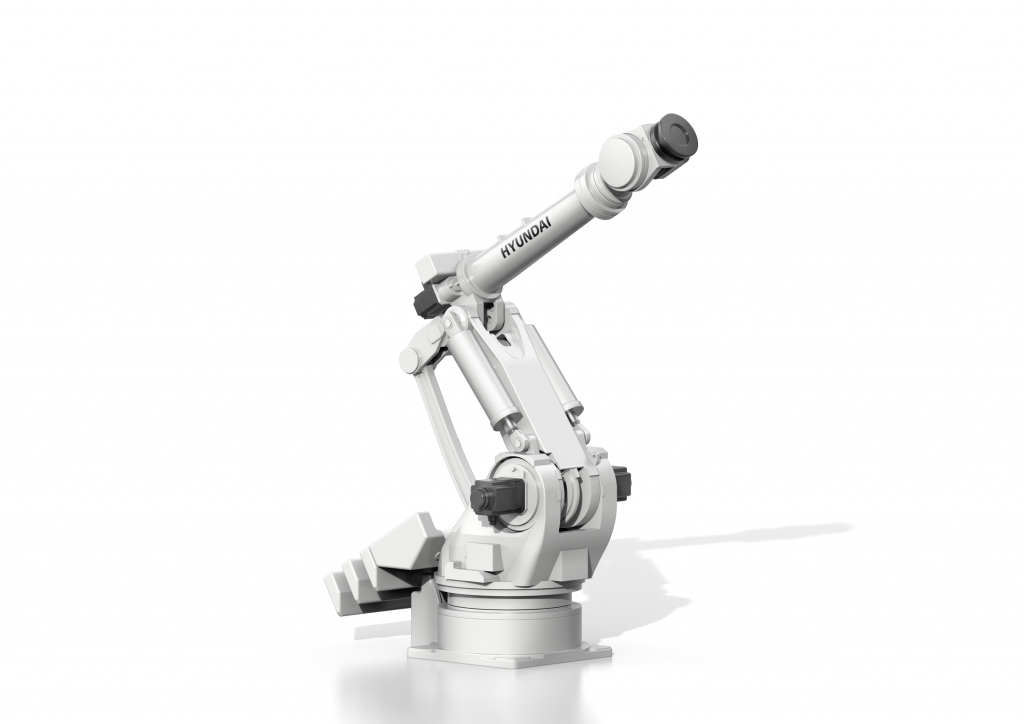

Hyundai HX500

Robot di alta portata .Raggio di lavoro 2703 mm portata 500kg

Scheda Tecnica

Applicazioni:

Hyundai Manipolazione Montaggio Pallettizzazione Saldatura a punti

Specifiche:

Raggio: 2.703 mm

Portata: 500 Kg

Features
  • High Speed
  • High accuracy
  • Large working envelope
  • High reliability & flexibility
Model HX500
Structure Articulated
Degree of Freedom 6
Drive Method AC Servo
Max.
MotionRange
Main Axes Swivel ±180°
Horizontal +165° ~ 15°
Vertical +60° ~ -70°
Wrist Axes R2 ±360°
B(Bending) ±120°
R1(Twisting) ±360°
Max.
Speed
Main Axes Swivel 90°/s
Horizontal 80°/s
Vertical 80°/s
Wrist Axes R2 100°/s
B(Bending) 100°/s
R1(Twisting) 160°/s
Payload 500 kg
Allowable
Torque
Wrist Axes R2 304 kgf.m
B(Bending) 304 kgf.m
R1(Twisting) 175 kgf.m
Repeatability ±0.08 mm
Ambient temperature 0 ~ 45° C
Body Weight 3.130kg
Installation method Floor
