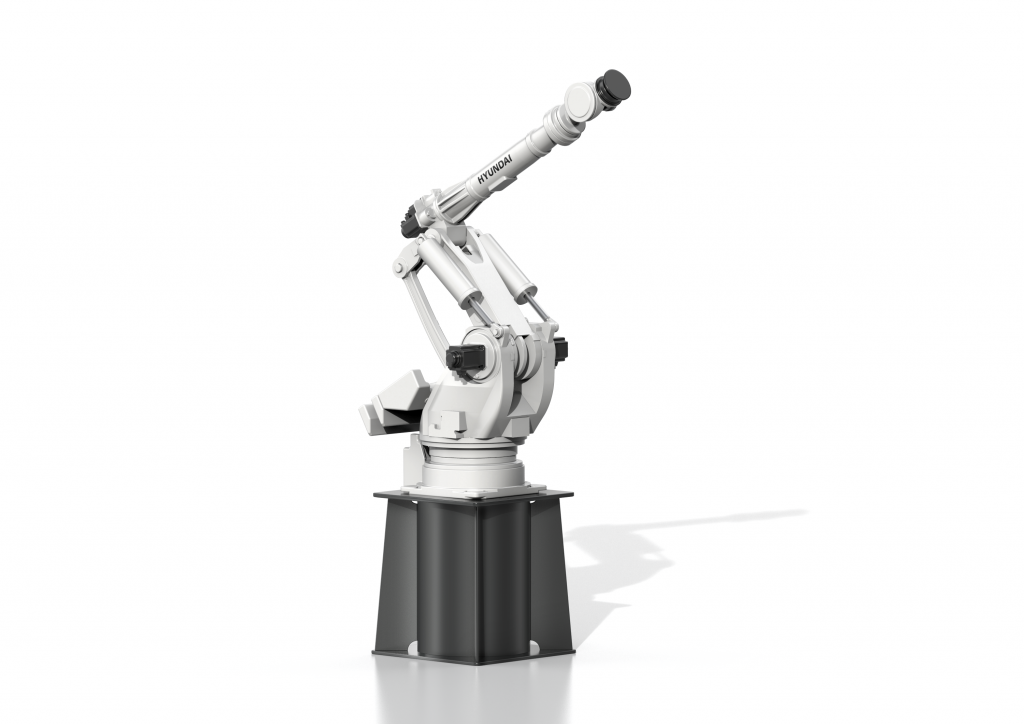

HYUNDAI HX400S

Robot a mensola di alta portata e lungo braccio. Raggio di lavoro 3106 mm portata 400kg

Scheda Tecnica

Applicazioni:

Hyundai Manipolazione Montaggio Pallettizzazione Saldatura a punti

Specifiche:

Raggio: 3.106 mm

Portata: 400 Kg

Features
  • High Speed
  • High accuracy
  • Large working envelope
  • High reliability & flexibility
Model HX400S
Structure Articulated
Degree of Freedom 6
Drive Method AC Servo
Max.
MotionRange
Main Axes Swivel ±180°
Horizontal +95° ~ -50°
Vertical +60° ~ -60°
Wrist Axes R2 ±360°
B(Bending) ±120°
R1(Twisting) ±360°
Max.
Speed
Main Axes Swivel 85°/s
Horizontal 85°/s
Vertical 85°/s
Wrist Axes R2 100°/s
B(Bending) 100°/s
R1(Twisting) 160°/s
Payload 400 kg
Allowable
Torque
Wrist Axes R2 200 kgf.m
B(Bending) 200 kgf.m
R1(Twisting) 84 kgf.m
Repeatability ±0.5 mm
Ambient temperature 0 ~ 45° C
Body Weight 2,910 kg
Installation method Shelf
